12 Gang Switch Panel with multiple functions
Alpha12 Digital Smart Switcher with 12 Outputs
SSV WORKS
SKU : 230-SW-E12-10
Power Cable Length : 10ft.
Alpha12 by SSV Works is the first digital accessory switcher of its kind. Featuring 12 fully programmable outputs controlled by an LCD touch-button display with customizable icons.

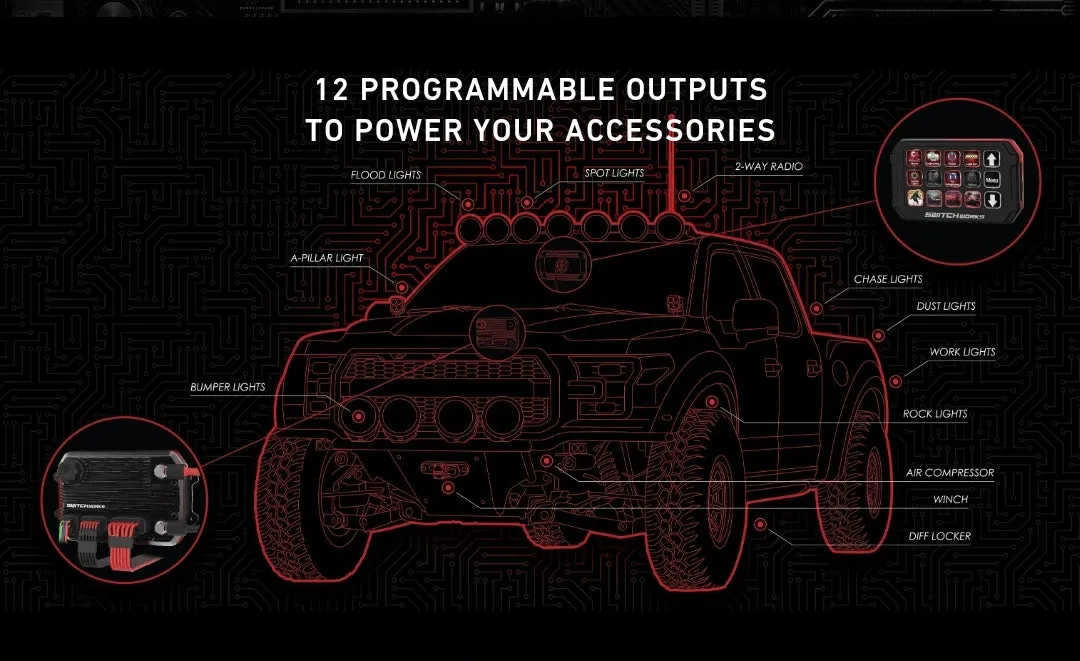

12 PROGRAMMABLE OUTPUTS TO POWER YOUR ACCESSORIES

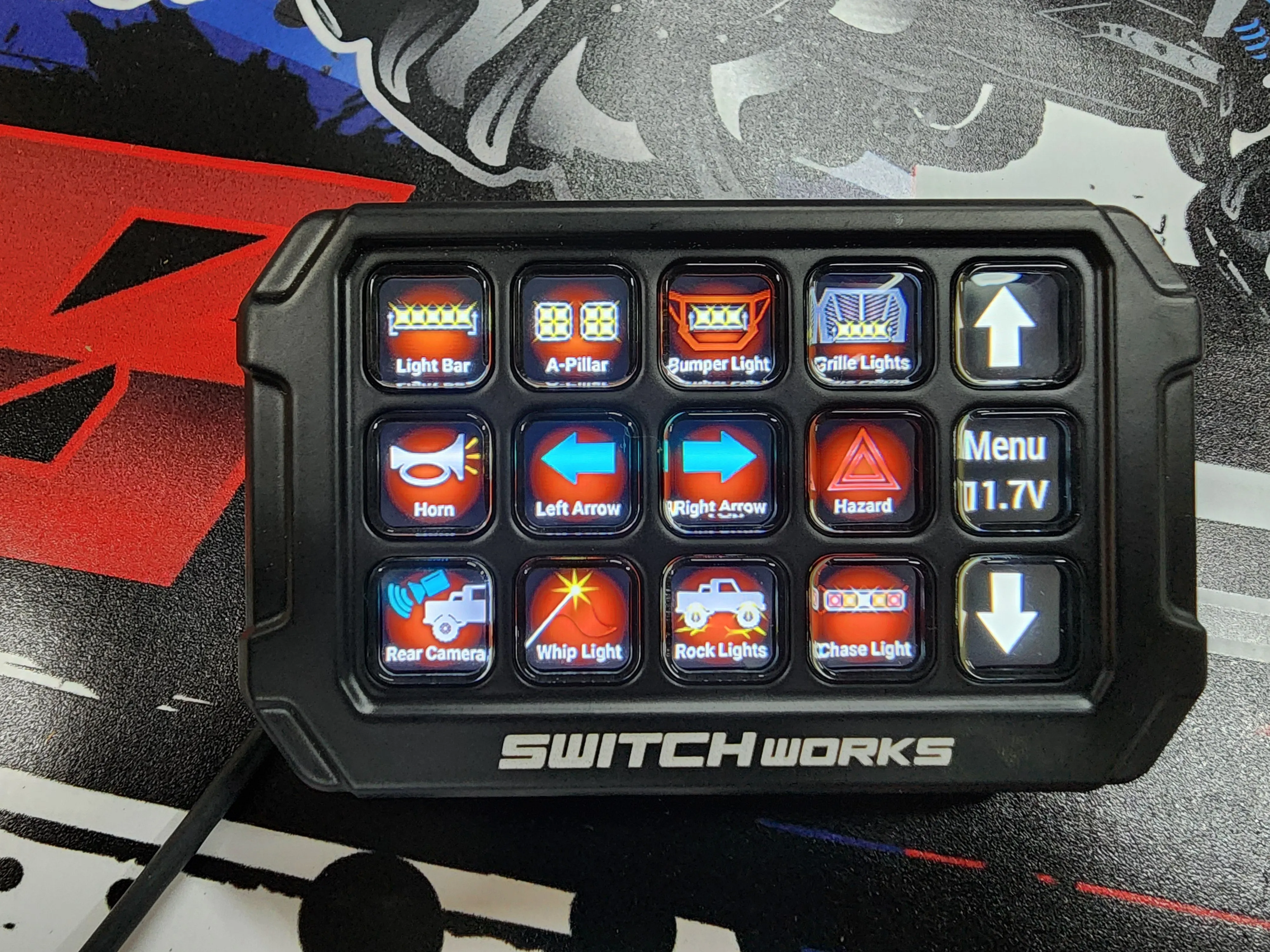

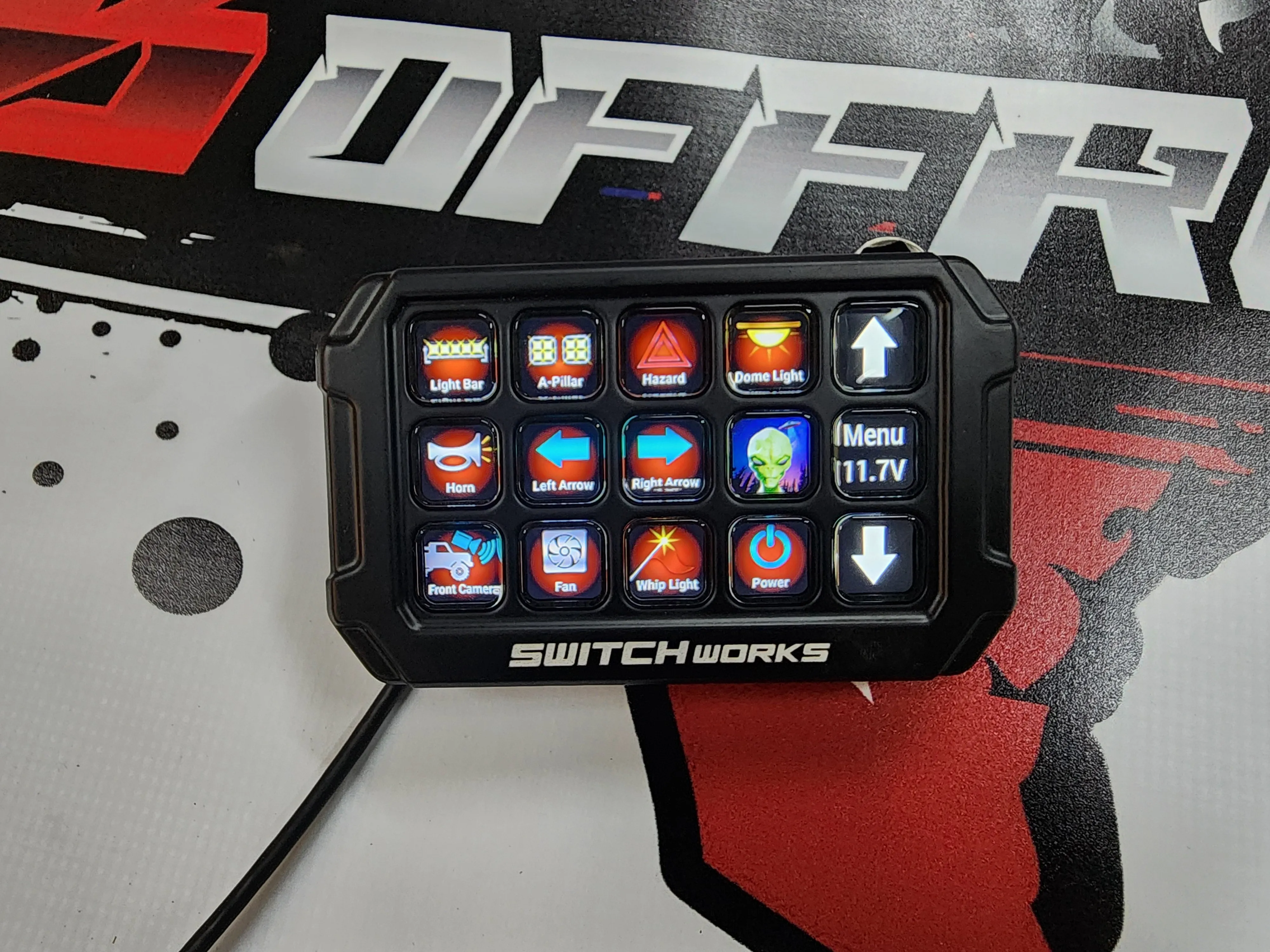

LCD PUSH-BUTTONS
Behind each individual button is an LCD screen. This means that you can digitally change your icon, and access menus through the buttons. From live-amperage readings, to button action setup, everything you need is easily accessible without the need of downloading an app.
LIVE AMPERAGE READINGS
Holding the "Menu" button displays your real-time amperage draw so you can see the exact amount of power your accessories are currently pulling.
MACRO CONFIGURATIONS
Whether you want your accessory to work with or without the ignition on, simple push ON/push OFF or one of the many other functional features, You can quickly and easily set the function for each output.
BUTTON ICONS/LOCATIONS
The beauty of running an electronic solid state system. is your output location (the slot you wire your accessories) doesn't determine the button location. You can choose button 1 to control output 3, or 4, even both! The possibilities are endless.
AMP LIMITATIONS / PRIORITY SHUTDOWN
Set the amp limitation based on the vehicle you install Alpha12 in. You can set priority shutdown in case your vehicle runs into any sort of voltage issue.
ADD MORE CIRCUITS OR MORE CONTROLLERS

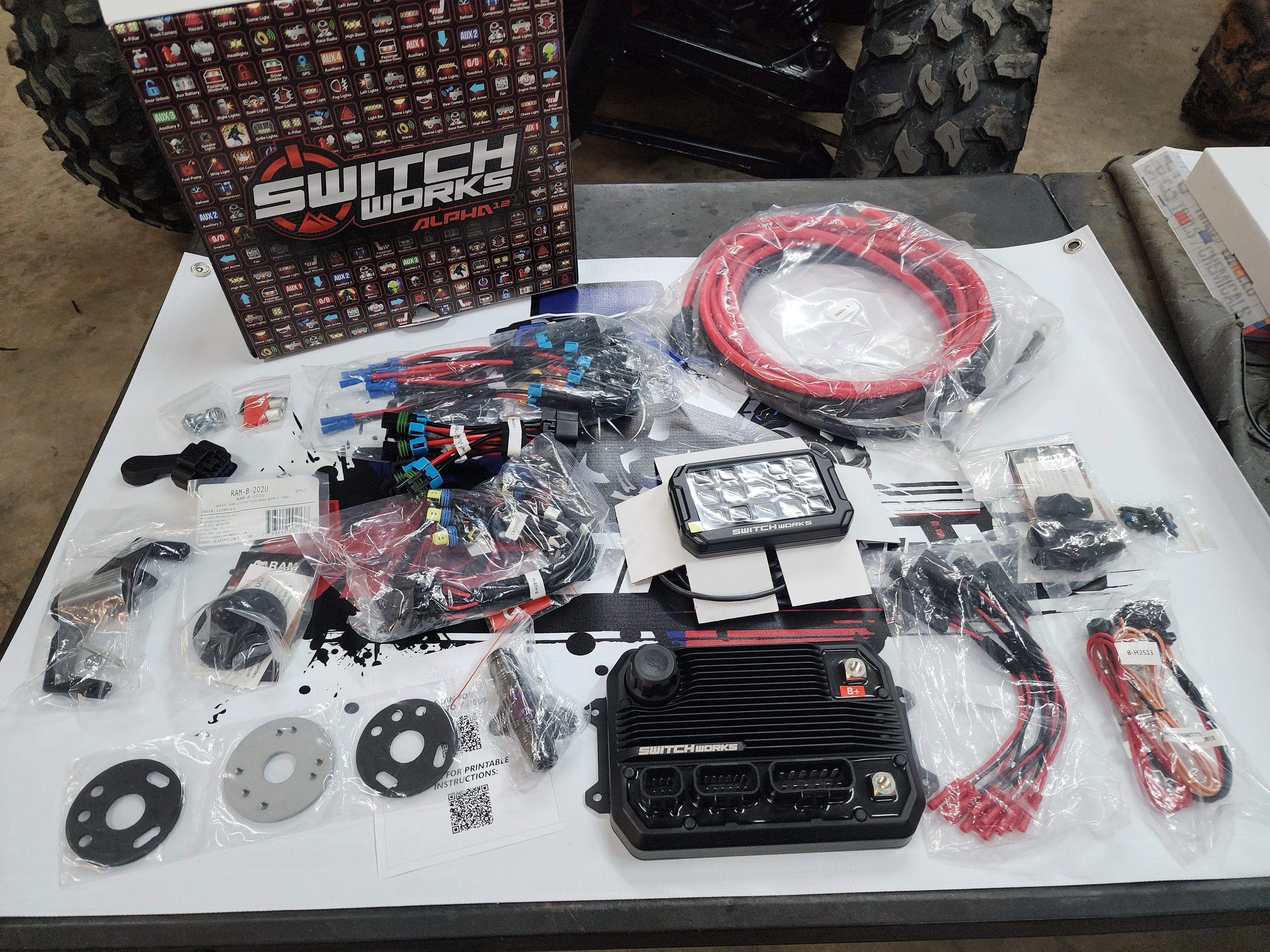

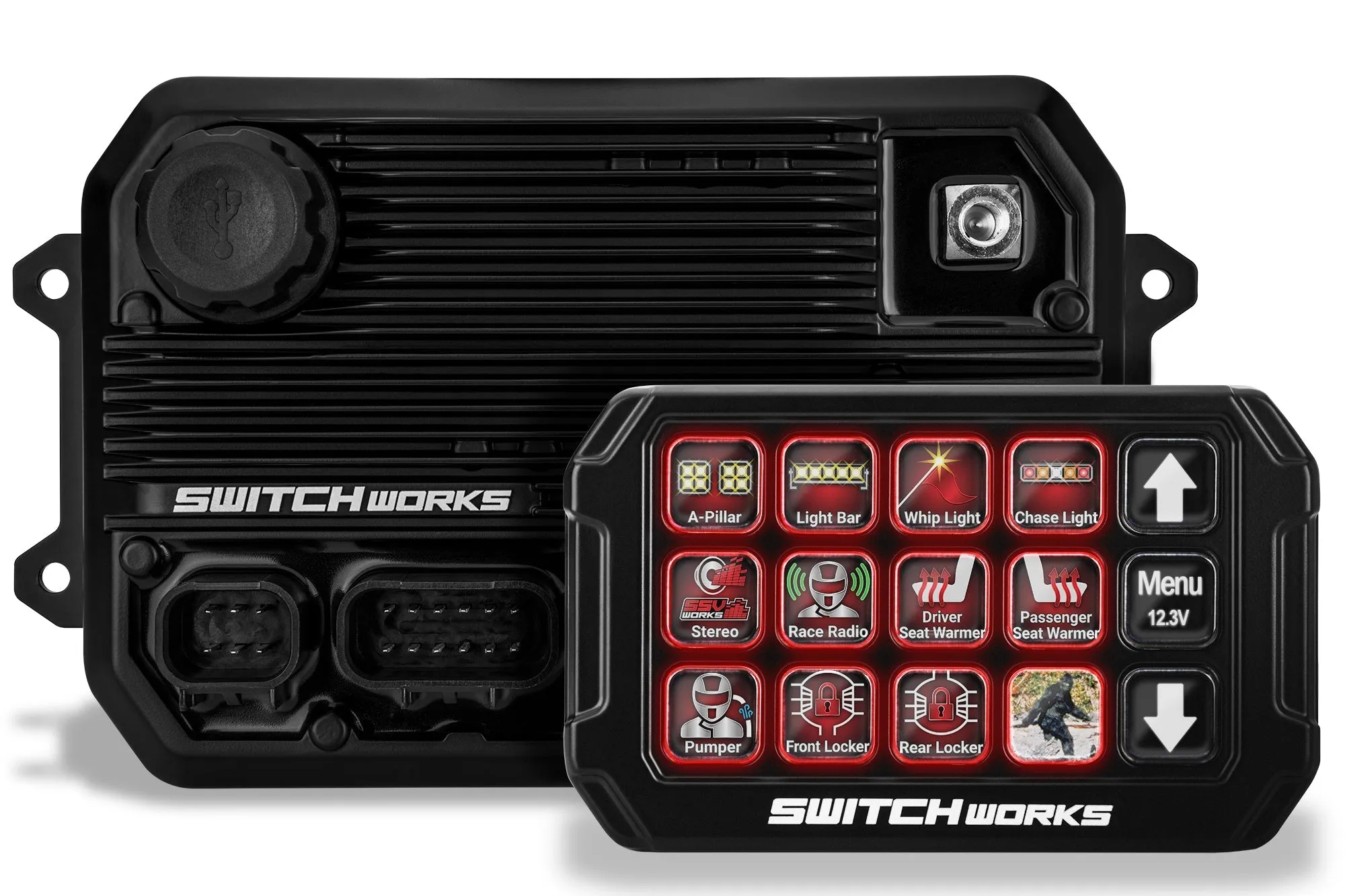

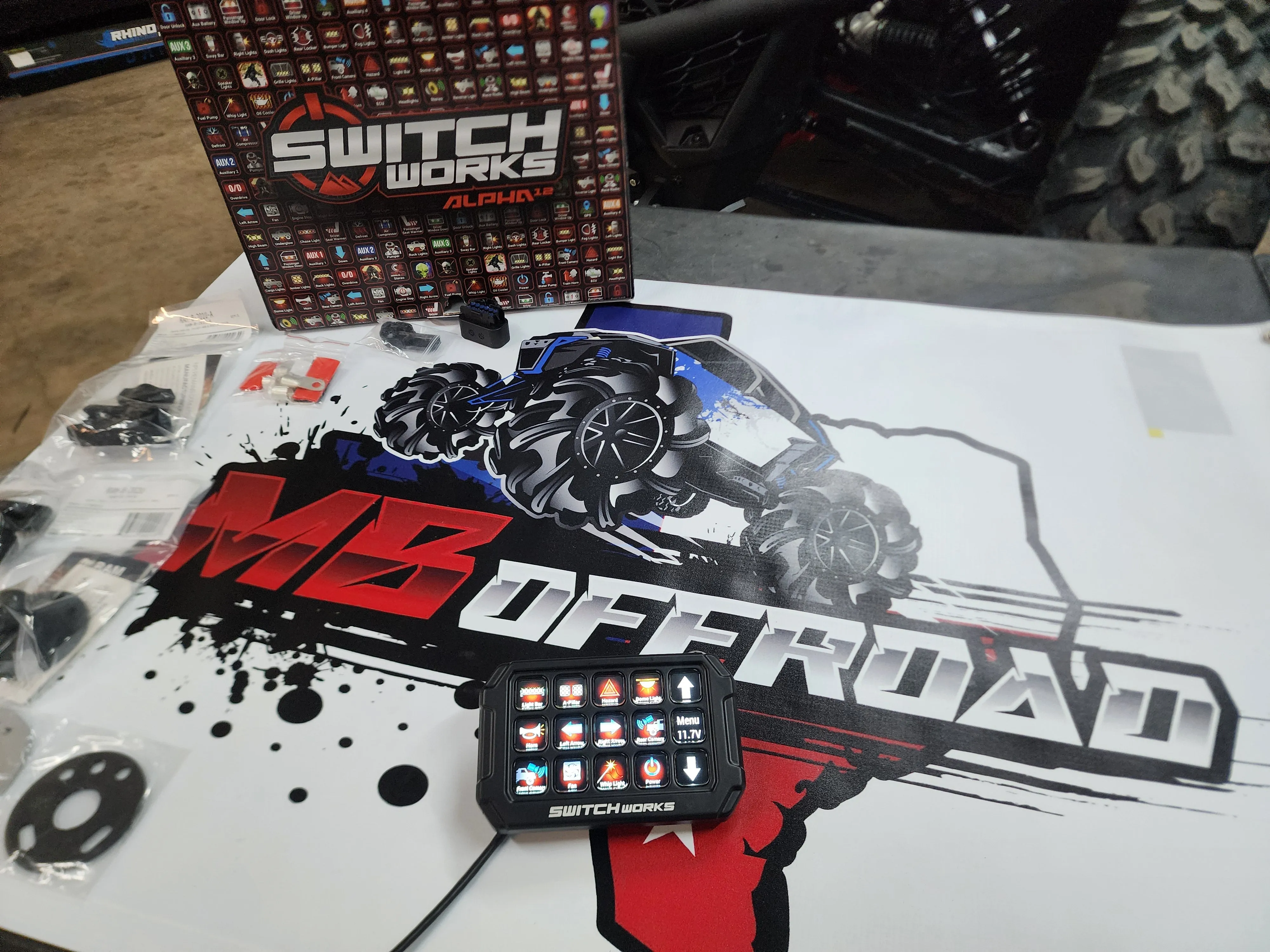

SWITCH Works comes with one controller and one brain which offers the 6 low-current and 6 high-current outputs. You can purchase a secondary controller or secondary brain for different configurations.
ADD MORE OUTPUTS
Need more then 12-ouputs? SWITCH Works allows you to easily connect a second brain while utilizing one single controller, keeping your dash clean and clear of clutter.
CONTROL FROM DIFFERENT LOCATIONS
In reverse of adding a second brain, you can also add a second controller to a single brain. One controller for the driver and one for the co-driver, or one controller in the cab and one in the bed of your truck.
APP CONFIGURATION
We've made configuration as easy as possible. If navigating menus within the controller aren't your thing, you can simply download the PC app and upload your own custom icons(icons are only uploaded through the app, not created), or configure your entire system. Can't figure something out? No problem. We can configure everything on our end for you, send you the file and you can upload it directly to your SWITCH Works via USB.
12 OUTPUT DIGITAL ACCESSORIES SMART-SWITCHER
12 Fully Programmable Outputs Controlled by an LCD Touch-Button Display

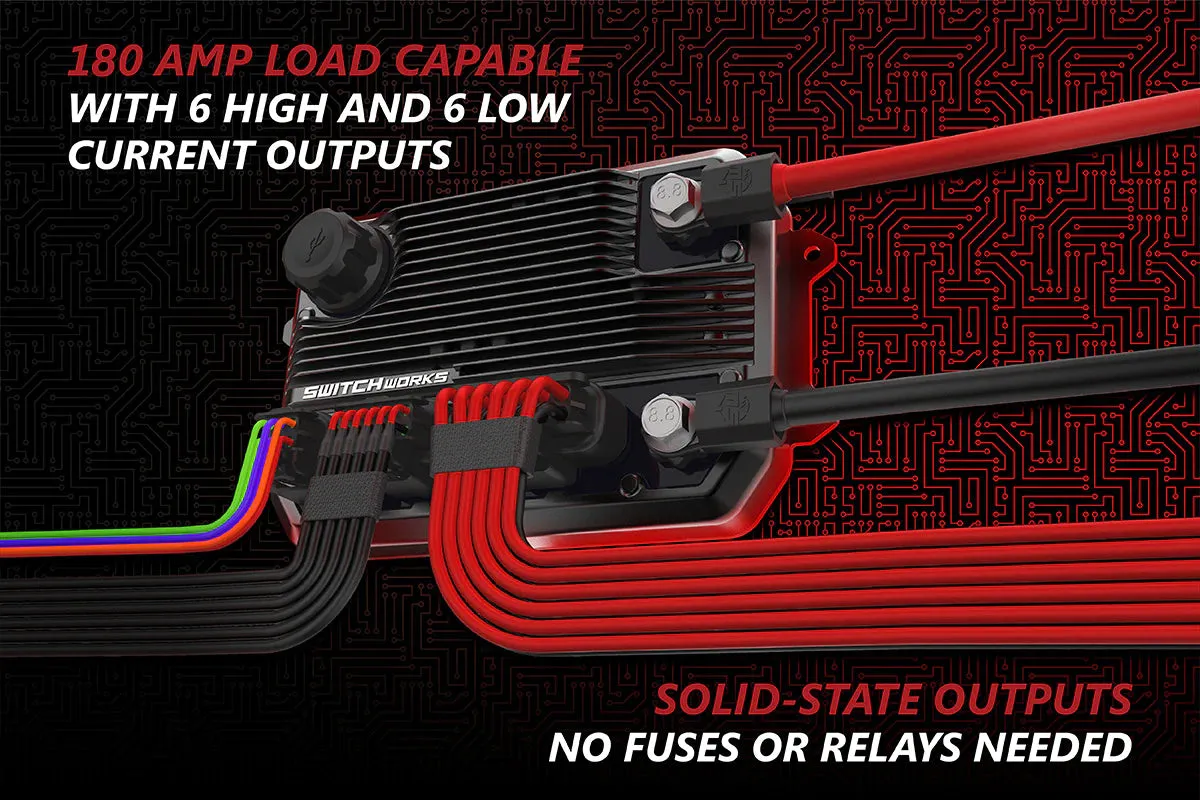

180 Amp Load Capable with 6 High-Current/6 Low-Current Outputs

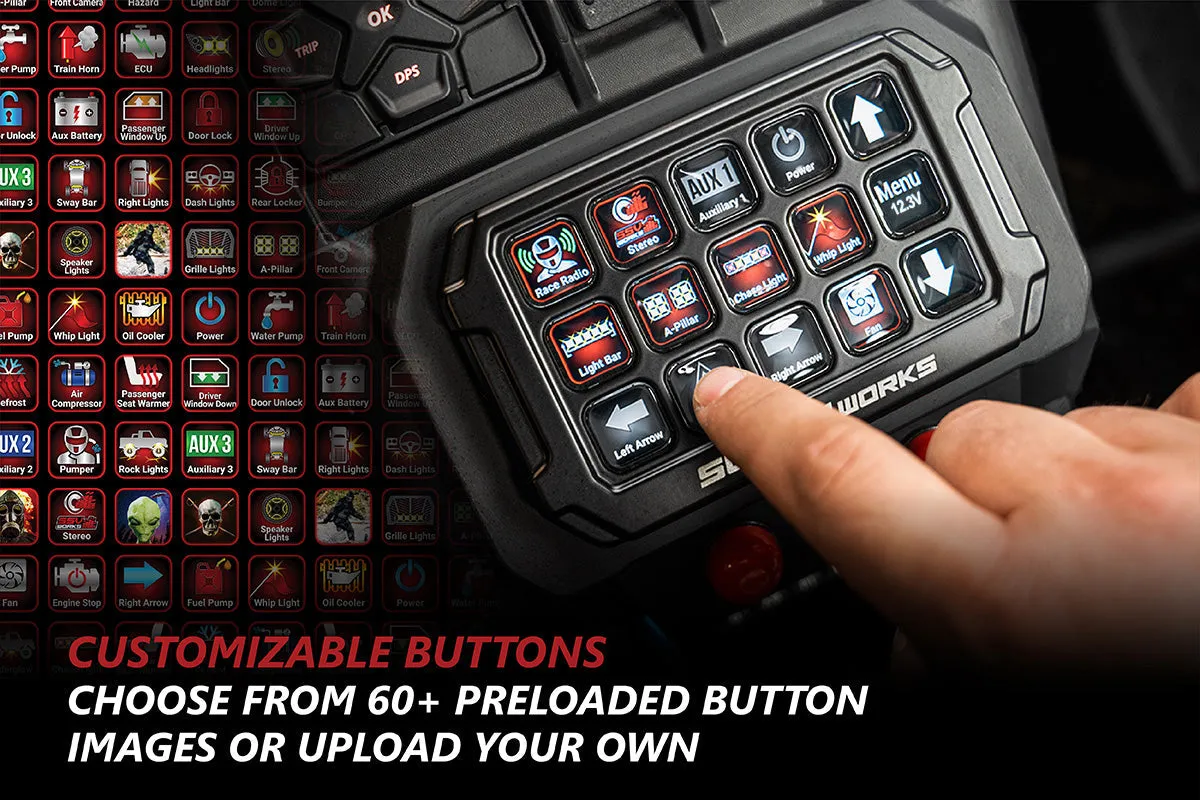

Choose From 60 Pre-Loaded Button Images or Upload Your Own
Power/Ground Direct Connections w/Weather-Proof Connectors
Solid-State Outputs, No Fuses or Relays Needed
Configurable Amperage Limitations Per Output

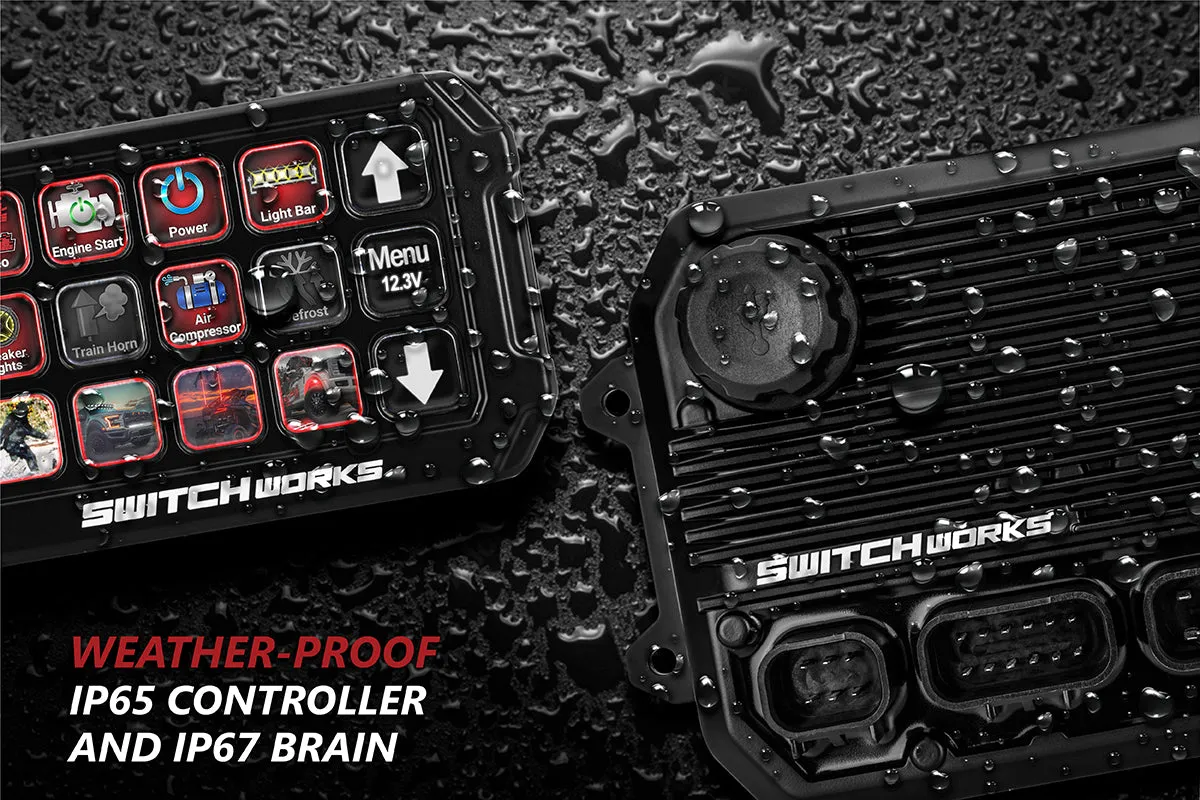

Weather-Proof: IP67 Brain and IP65 Controller
Hyper-Brite Display for Day/Night Mode
System Health / Hazard Warnings
Low Profile for Easy integration
Dual Function Buttons
NOT JUST FOR UTVs
With a configurable range of 80 to 180 amps, SWITCH Works is an ideal solution for both on-road and off-road vehicles, RVs, motorhomes, boats, and more.
