- 4 Output Speed: The digital analog oscilloscope has 4 speed waveform signal output function,1kHz, 10KHz, 100KHz, 1MHz.
- 12 Kind of Parameters: This oscilloscope can measure Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T , T‑, Du , Du‑ 12 kinds of parameters.
- Powerful: The oscilloscope has three scanning modes, 12 kinds of test data, can store 2500 waveforms, and supports thumbnail view.
- Silicone Protective Cover: The silicone protective cover on both sides of the oscilloscope body is slip proof, drop proof, shock proof, and comfortable to the touch.
- Easy to Carry: The oscilloscope is small and lightweight, so you can take the oscilloscope wherever you want to use with you.
Item Type: Colorful Digital Oscilloscope
Material: ABS, silicone
Battery: 1 x polymer battery
Battery Capacity: 2000mAh (shipped with internal battery)
Number of Channels: 1
Signal Source Output: 1KHz, 10KHz, 100KHz, 1MHz
Screen Size: 2.4 inch color screen
Scan Mode: Support
Screen Resolution: 0 x 240
One Touch Auto: Support
Display Process:
Waveform Storage: Store up to 2500 waveforms
Waveform Bandwidth: 120MHz
Waveform Manager: Support
Maximum Sampling Rate: 500MSa/S
Voltage Accuracy: 10%
Rise Time: Frequency Accuracy: 1%
Storage Depth: 12.8div
Measurement Parameters: 12 types in total
Input Impedance: 1MΩ
Battery Capacity: 2000mA
Vertical Sensitivity: 50mV-100V
Standby Time: 8 hours
Time Base Range: 6nS-50S
Backlight Brightness: 1-8 levels adjustable
Trigger Mode: Auto, Normal, Single
Charging Requirement: DC5V, 1A, 2A
Trigger edges: Rising edges, falling edges

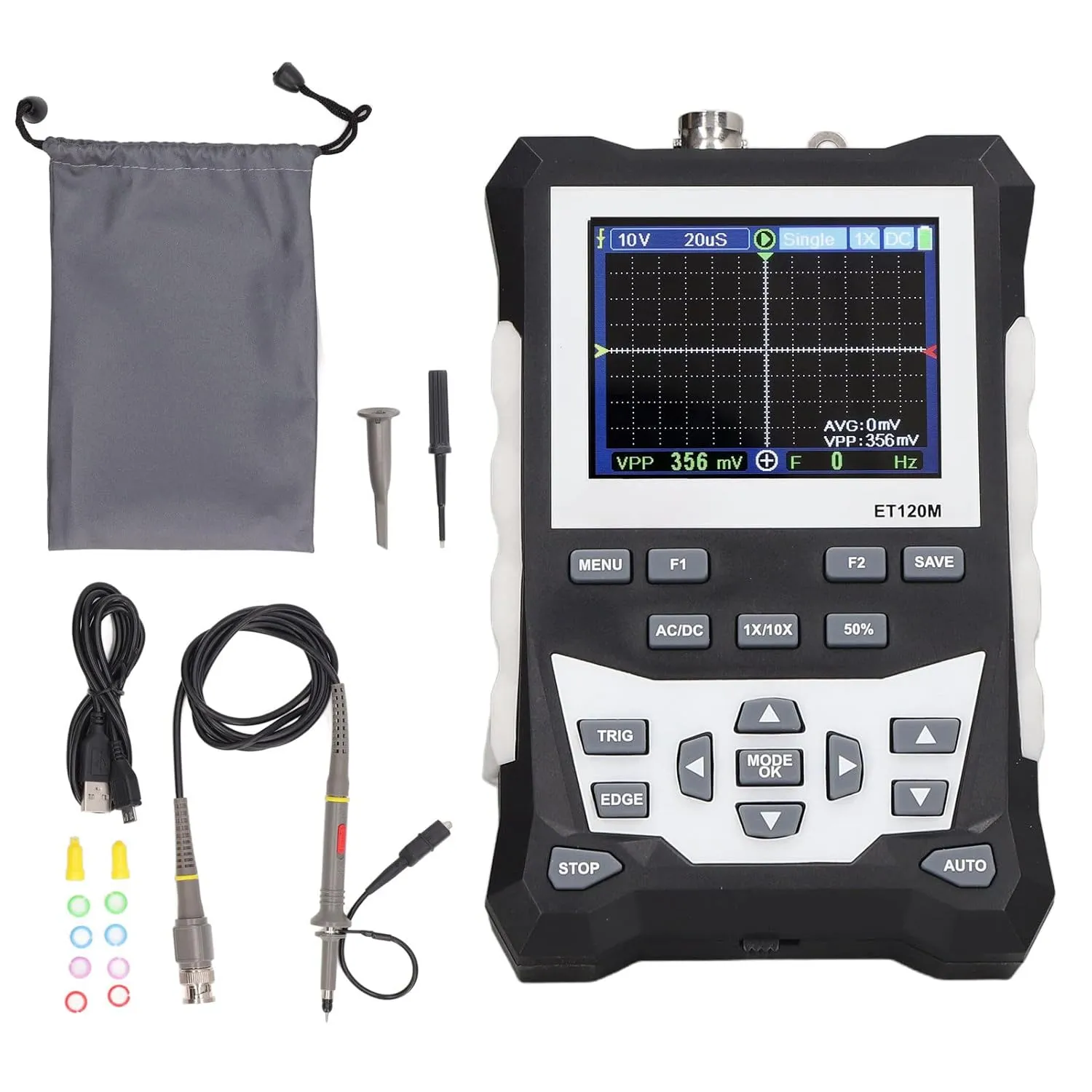

Package List：
1 x Colorful Digital Oscilloscope1 x Charging Cable
1 x Oscilloscope Probe
1 x Probe Hook
1 x Senseless Adjustment Bit
8 x Color Ring
2 x Probe Hook Cover
1 x Oscilloscope Instruction
1 x Test Pen Instruction
1 x Storage Bag
- Package Dimensions : 7.87 x 5.91 x 1.97 inches; 13.51 ounces
- Date First Available : September 29, 2024
- Manufacturer : Locadence
