Upgrade your business with a new wide-format heat press. With this new 26” x 32” heat press, you can expand your product offerings and easily scale your production.

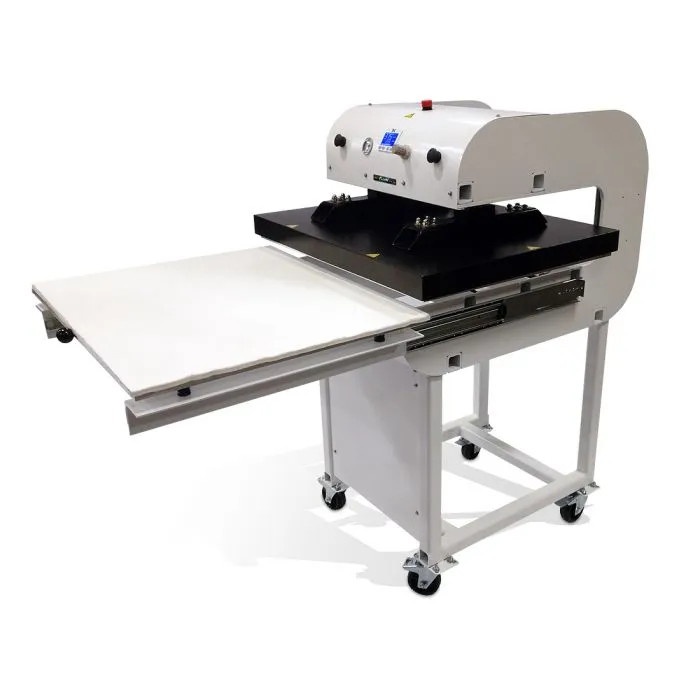

The Geo Knight Digital Automatic Heat Press is an air-operated automatic large format 26" x 32" heat transfer press. The heat press provides production-oriented pressing with push button operation, fully digital temperature & time control, and solid steel welded frame design with an affordable automatic large format price.
The 26” X 32” heat press utilizes the same Digital Knight control system, heating elements, and pressure capability as the MaxiPress AIR series, and operates with a smooth drawer-style front-loading motion & high pressure top-down pneumatics with fully adjustable PSI control.
The Digital Knight 26” X 32” Press is the ideal press for meeting 24"-width printer output and other oversized transfer requirements that are far larger than what 20x25 models can accommodate, with a price tag a fraction of the cost of the MaxiPress line. Capable of perfectly pressing fabric, complex garments, metal, wood, ceramics, glass, and more... The Digital Knight Heat Press is the industrial-grade large-format solution between smaller platens and the MaxiPress.
FEATURES
Fully digital temperature control 32°-600°F range
Automatic digital timer & dual pre-press timer
Air regulator and gauge 20-100 PSI range (compressor req)
Total applied force of 6000 lbs. max
Self-leveling pressure system
70 Programmable presets
Solid steel welded framework
SuperCoil-Microwinding™ heater technology
Ultra-thick heater block assembly
Solid loading bed with ultra-thick nomex padding
Accommodates materials up to 2" thick
Dual button easy-activate safety circuit
Temperature readout accuracy -2°F - can show °C or °F
User selectable end-of-cycle alarms
Records number of pressing cycles done
Heavy duty locking casters for easy movability and solid foundation support
Warranty
Free lifetime technical support
Full one year warranty on heating element, controls and entire press
Specifications
Air Compressor Required (min): 7gal, 1cfm, 100psi, 3/8" line
Net Weight: 790 lbs.
Electrical: 5600W / 25A / 220V (1PH)
Shipping Dims: 38" D x 40" W x 60" H
